Field Sprayer Navigation Kit · 5 Way TNOV2N.01 + TAQU500.01 + KYP046
Nova 2N Field 500
The 5-section field kit: Nova 2N navigation, an Aqua 500 control box for manual override and the AIR ECU on the sprayer. The valve harness plugs into ECU sockets 1 and 2 and the cab link is wireless. Five boom sections switch automatically from GPS position, rate control holds the dose, and the 20 bar Wolf flowmeter kit supplies main valve, line filter, control valve and section valve. A Hydra 500 or 700 hydraulic boom box can be added on ECU socket 4 — both kits run on one ECU.
Best for: MFS and TFS field sprayers with 5 boom sections, especially where a hydraulic boom box will be added later.
Straight-line guidance with shift-line and pause point; field perimeter recorded with GNSS.
Automatic Section Control
5 sections switch on/off automatically from the field map and GPS position; Aqua 500 switches for manual override.
Automatic Rate Control
Target rate held constant in real time regardless of speed or field conditions.
AIR ECU Wireless Link
The 5-way valve harness plugs into ECU sockets 1 + 2 on the sprayer; the cab link is wireless.
20 bar Wolf Flowmeter Kit
Main control valve, line filter, control valve and 5W section valve for field booms.
Hydra Ready
Add a Hydra 500 / 700 hydraulic boom kit on ECU socket 4 — both kits run on one ECU.
Package & order codes
What's in the box
Core elements ship with every unit; optionals are quoted on request. Order codes match the Tim Digitize catalogue.
Core elements · 9
TNOV2N.01Nova 2N Computer
SIM0142 m Power Cable
KYP054Smart GNSS Harness
KYP046AIR ECU Box
SIM106AIR ECU Main Cable · 12 V + 2 way
SIM107AIR ECU Cable · 5 way
KYP029Triple Suction Cup Mount · 6 cm short arm
KYP036Cross 200 Smart GNSS
TAQU500.01Aqua 500 Control Box
Optional · 7
KYP021Level Sensor 0.4 bar · 2 m cable
KYP022Pressure Sensor 25 bar · G 1/4
THYD500.01Hydra 500 Control Box
THYD700.01Hydra 700 Control Box
SIM109AIR ECU Hydra Cable
KYP067Cross 300 Smart Antenna
KYP055GNSS 14 Pin Cable
Required products on the sprayer
Valve kits, sensors and fittings the system needs on the machine — we quote them together with the computer and fit them at commissioning.
20 bar 5W Wolf flowmeter electrovalve kit
TA 871T50220 bar Main Control Valve
TA 863T024SProportional Valve
TA 32621M3Line Filter
TA 4626415Wolf Flow Meter
TA 863T01505W Section Valve
Fittings & manometer
TA 1091313Hose Connector 13 mm · ×5
TA G11058VGasket · ×5
TA 1190425Elbow Fitting · ×1
TA 010004Fitting Set · ×1
TA 911025Manometer · ×1
Optionals
TA 864050250200 l/min Main Control Valve
TA 46211A4A5B5ORION Flow Meter
TA 1091316Hose Connector 16 mm
AIR ECU · wireless valve interface
How it connects

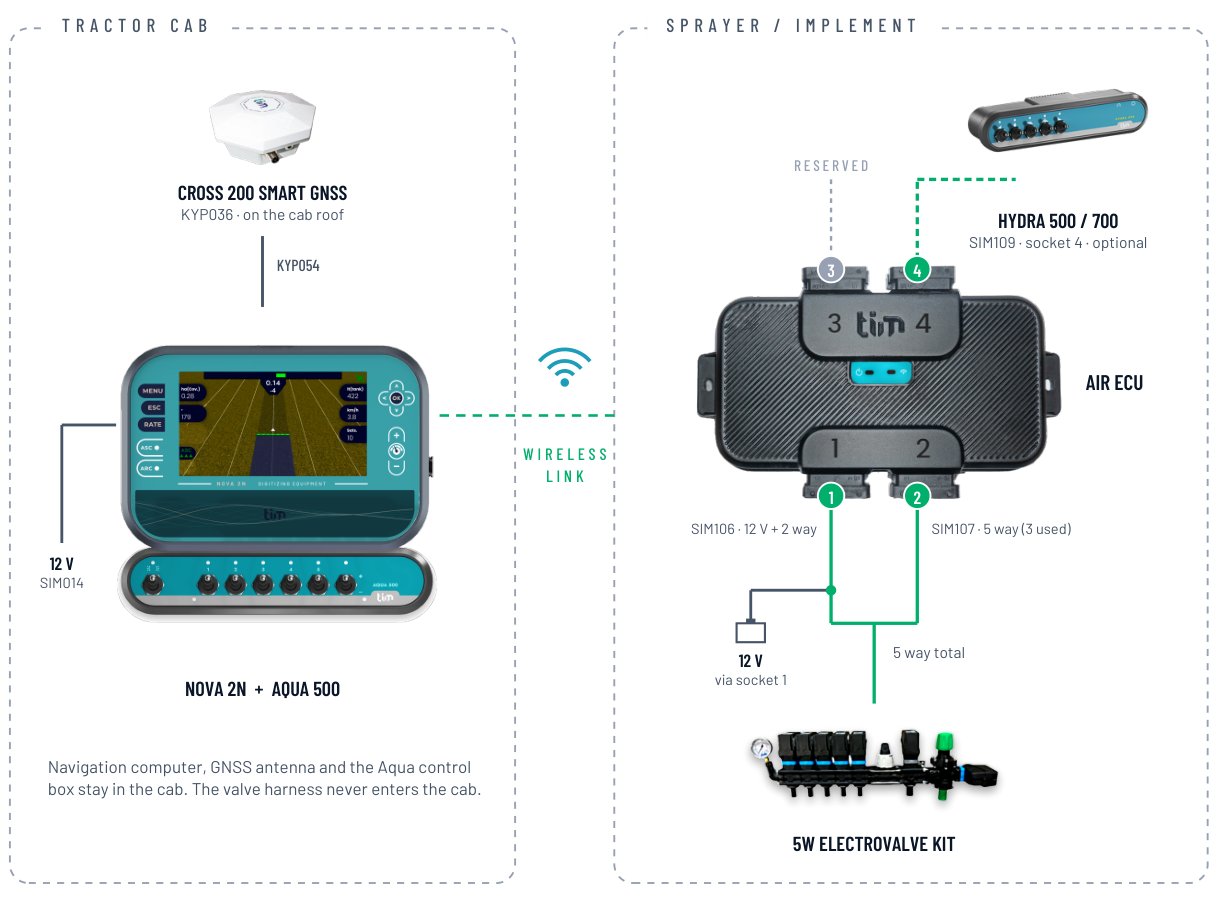

Field version: the Aqua 500 valve harness plugs into sockets 1 + 2 of the AIR ECU on the sprayer; the link to the Nova 2N and the Aqua 500 box in the cab is wireless.
AIR ECU

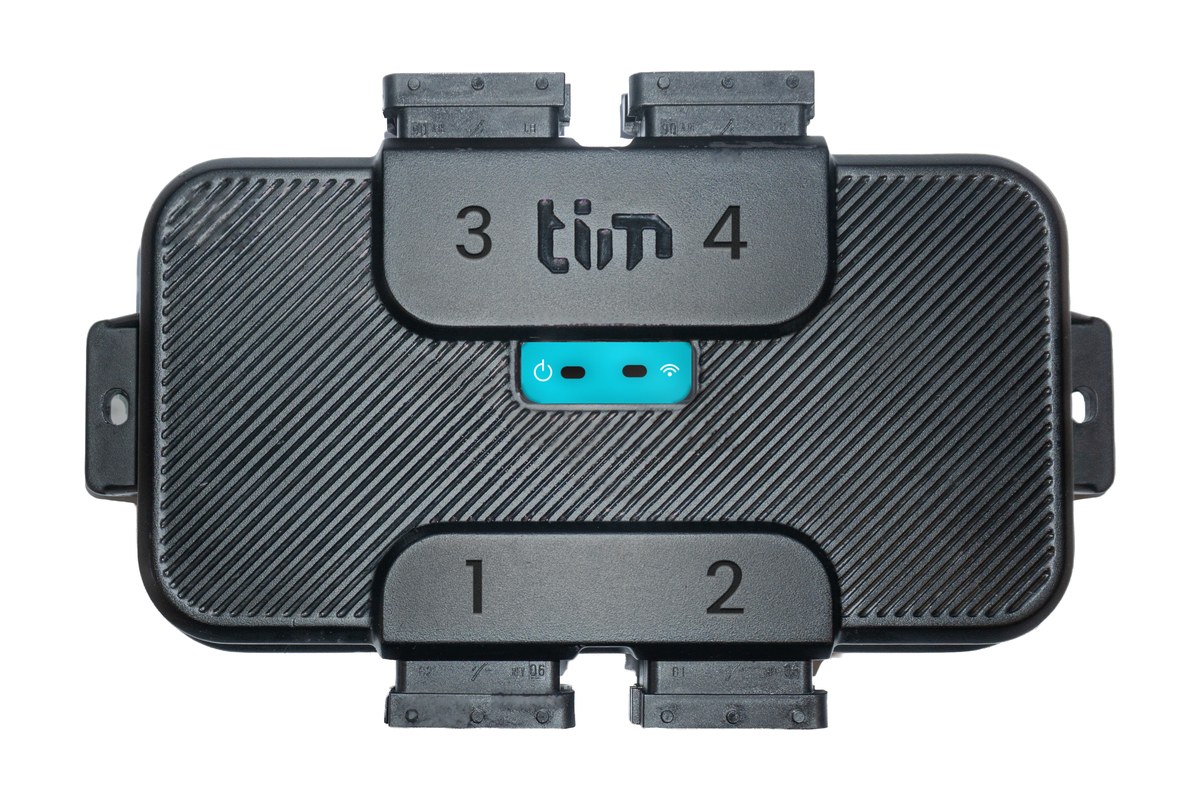

The AIR ECU is mounted on the sprayer, next to the valves. The valve harness plugs straight into its sealed, numbered sockets and the ECU talks to the box in the cab wirelessly — no thick valve cable has to be pulled into the tractor cab. Power and wireless-link LEDs on the front plate show the status at a glance.
