Orchard Sprayer Navigation Kit · 2 Way TNOV2N.01 + TAQU200.01 + KYP046

Nova 2N Orchard

The complete orchard kit: the Nova 2N navigation computer, an Aqua 200 control box for manual override and the AIR ECU wireless valve interface. The 2-way valve harness plugs into socket 1 of the ECU on the sprayer and the link to the cab is wireless, so no thick valve cable runs through the tractor. Two sections switch automatically from the field map and GPS position, rate control holds the target dose, and the 40 bar Orion or Wolf valve kit handles orchard pressures.

Best for: TOS and other orchard sprayers where the operator wants guidance, automatic section control and a cab free of valve cables.

Get a quote More at timdigitize.com ↗

Specifications
Function	Navigation + auto section + rate control · orchard
Sections	2
Control box	Aqua 200 (in the cab)
Valve link	AIR ECU wireless · socket 1
Valve kit	40 bar 2W Orion or Wolf
GNSS	Cross 200 included · Cross 300 optional
Power	12 V DC
TIM App reports	Yes

Key features

Nova 2N Orchard

A–B Guidance & Boundary

Straight-line guidance with shift-line and pause point; record the orchard perimeter with GNSS.

Automatic Section Control

2 sections switch on/off automatically from the field map and GPS position; Aqua 200 switches for manual override.

Automatic Rate Control

Target rate held constant in real time regardless of speed or field conditions.

AIR ECU Wireless Link

The 2-way valve harness plugs into ECU socket 1 on the sprayer; the cab link is wireless.

40 bar Orchard Valves

Works with the 2W Orion or Wolf electro valve kit for high-pressure orchard spraying.

Cross GNSS Options

Cross 200 Smart GNSS antenna included; Cross 300 Smart Antenna for higher precision.

Package & order codes

What's in the box

Core elements ship with every unit; optionals are quoted on request. Order codes match the Tim Digitize catalogue.

Core elements · 8

TNOV2N.01Nova 2N Computer
SIM0142 m Power Cable
KYP054Smart GNSS Harness
KYP046AIR ECU Box
SIM106AIR ECU Main Cable · 12 V + 2 way
KYP029Triple Suction Cup Mount · 6 cm short arm
KYP036Cross 200 Smart GNSS
TAQU200.01Aqua 200 Control Box

Optional · 4

KYP021Level Sensor 0.4 bar · 2 m cable
KYP022Pressure Sensor 25 bar · G 1/4
KYP067Cross 300 Smart Antenna
KYP055GNSS 14 Pin Cable

Required products on the sprayer

Valve kits, sensors and fittings the system needs on the machine — we quote them together with the computer and fit them at commissioning.

2W electro valve Orion kit

TA 881B14252D40 bar 2W Electro Valve Orion Kit
TA 010004Fitting Set · ×1
TA 1190425Elbow Fitting · ×1
TA 911040Manometer · ×1

2W electro valve Wolf kit (alternative)

TA 881B14252K40 bar 2W Electro Valve Wolf Kit
TA 010004Fitting Set · ×1
TA 1190425Elbow Fitting · ×1
TA 911040Manometer · ×1

AIR ECU · wireless valve interface

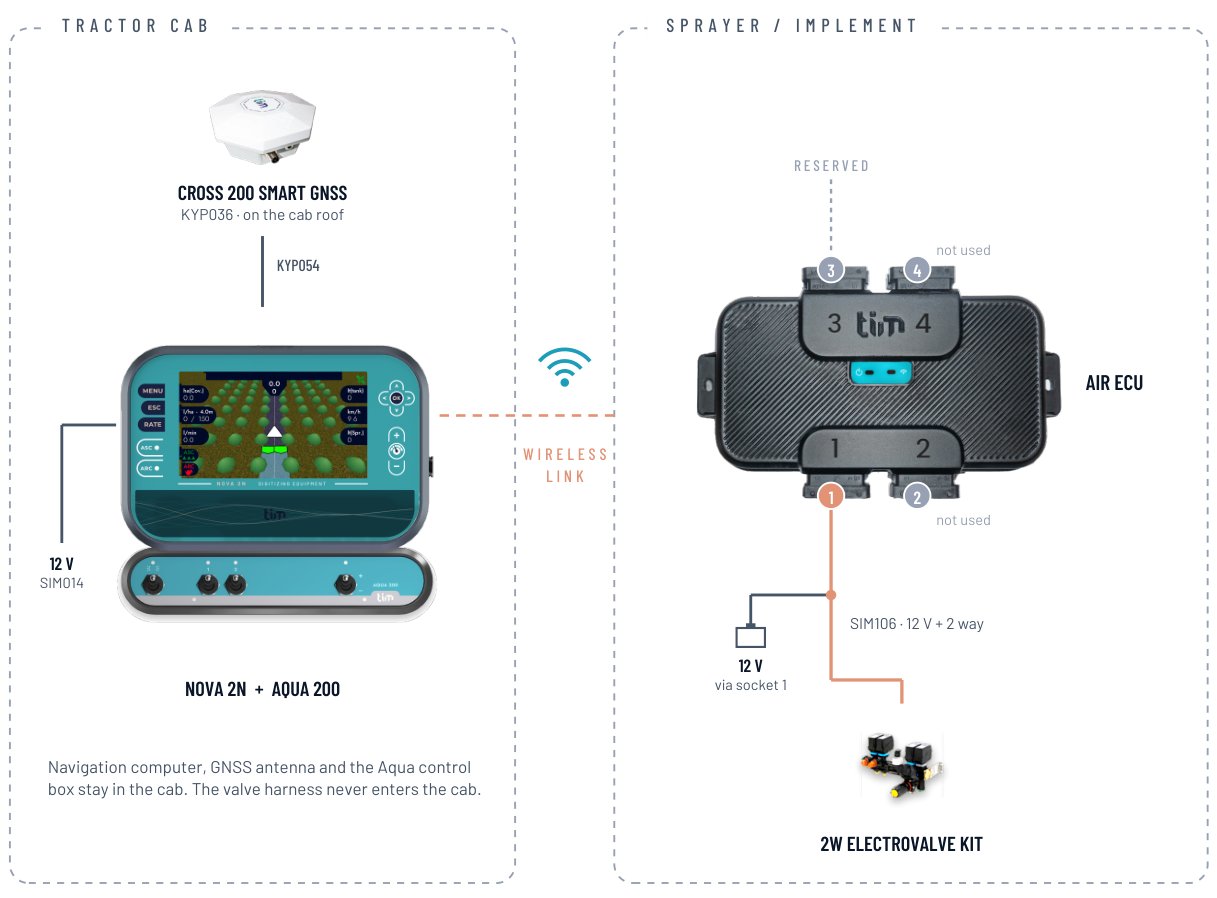

How it connects

Orchard version: the Aqua 200 valve harness plugs into socket 1 of the AIR ECU on the sprayer; the link to the Nova 2N and the Aqua 200 box in the cab is wireless.

AIR ECU

The AIR ECU is mounted on the sprayer, next to the valves. The valve harness plugs straight into its sealed, numbered sockets and the ECU talks to the box in the cab wirelessly — no thick valve cable has to be pulled into the tractor cab. Power and wireless-link LEDs on the front plate show the status at a glance.
