The Hydra 500 puts five hydraulic boom functions on switches in the cab — levelling, height, lock and two boom movements — driving a 6-spool solenoid directional valve block on the sprayer through a 6 m cable (11 m optional). The AIR version connects the solenoid valves on the sprayer through the AIR ECU and links to the cab wirelessly.
Best for: field sprayers with hydraulic boom lift and fold that are operated from a closed cab.
Hydraulic valves in the system let you control every boom movement from the cab.
5 Way
Levelling, height, lock and 2 boom movements.
AIR ECU Version
Also available as Hydra 500 AIR — the SIM109 valve cable plugs into ECU socket 4 on the sprayer.
Package & order codes
What's in the box
Core elements ship with every unit; optionals are quoted on request. Order codes match the Tim Digitize catalogue.
Core elements · 3
THYD500.015W Control Box
SIM0242 m Power Cable
SIM0276 m Valve Cable
Optional · 3
KYP029Triple Suction Cup Mount · 6 cm short arm
KYP037Screw Mount · 6 cm short arm
SIM00211 m Valve Cable
Required products on the sprayer
Valve kits, sensors and fittings the system needs on the machine — we quote them together with the computer and fit them at commissioning.
Solenoid directional valves
TIMFAYP16Solenoid 6-Spool Directional Valves
AIR ECU · wireless valve interface
Hydra 500 AIR THYD500.02

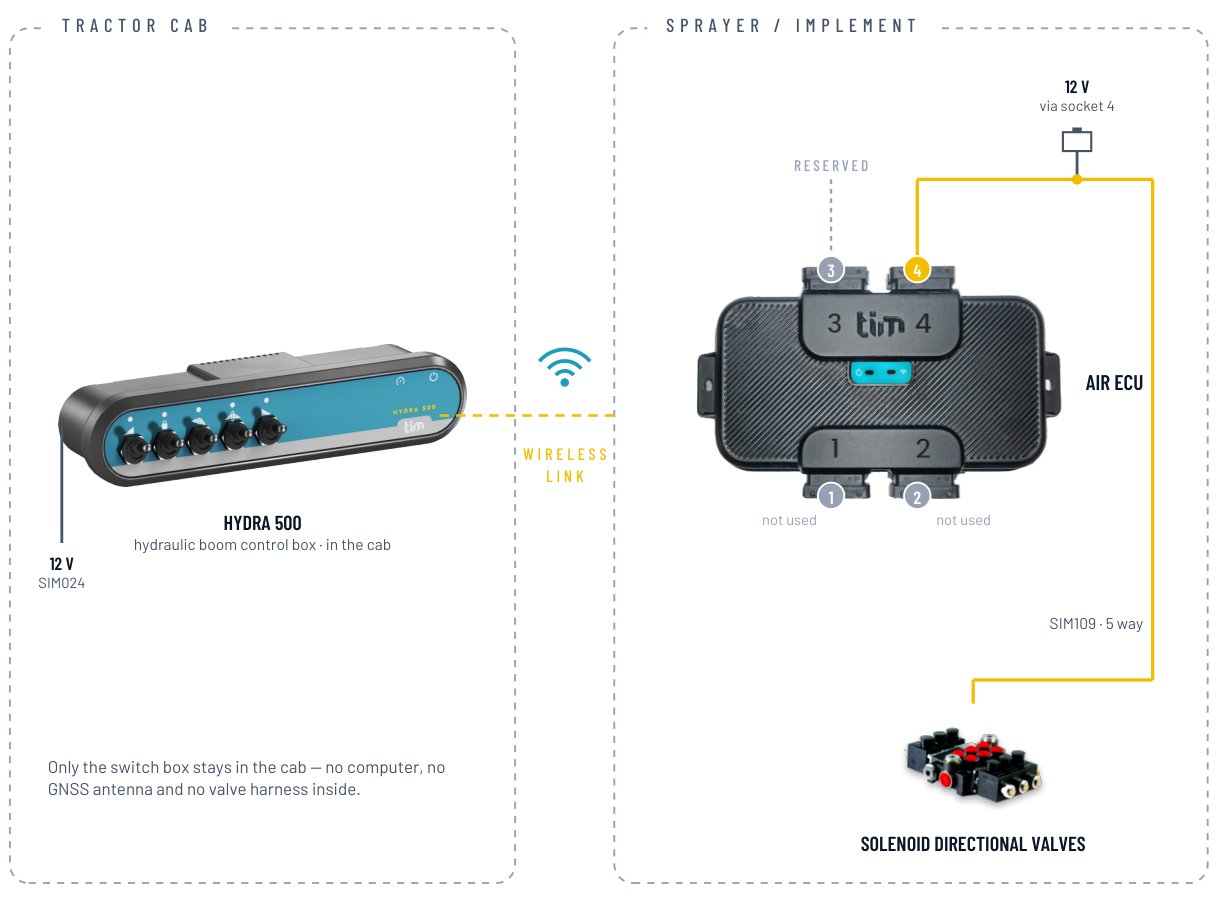

The Hydra 500 hydraulic control box with the AIR ECU wireless valve interface — boom movements from the cab, solenoid valves connected on the sprayer, no valve cable through the cab. The SIM109 valve cable plugs into ECU socket 4.
AIR ECU

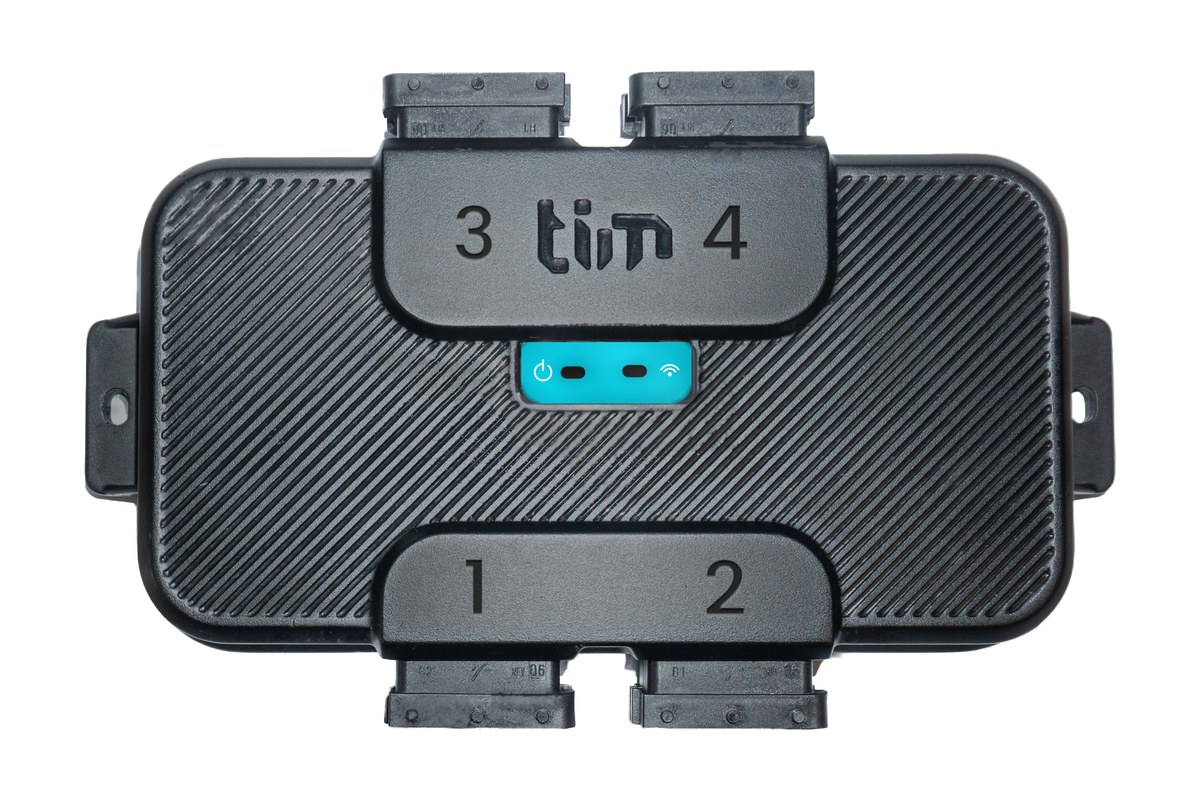

The AIR ECU is mounted on the sprayer, next to the valves. The valve harness plugs straight into its sealed, numbered sockets and the ECU talks to the box in the cab wirelessly — no thick valve cable has to be pulled into the tractor cab. Power and wireless-link LEDs on the front plate show the status at a glance.
