Fittings TA 220060

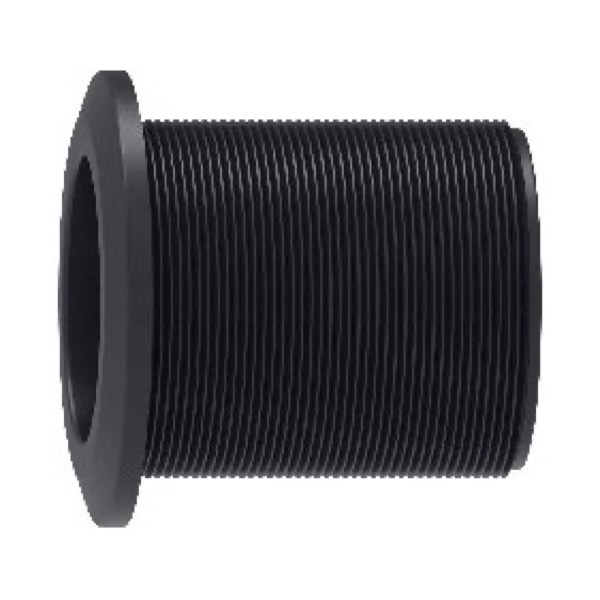

Drain Outlet
G 1 1/2” drain outlet with a 38 mm bore. Height 46 mm, length 52 mm, outer diameter 66 mm. Threads are G 1 1/2” BSP male and G 1 1/2” female, with wing nut TA 2052060 listed as compatible. Used as a tank outlet or suction take-off on medium-sized sprayers.
| Height (h) | 46 mm |
| Length (L) | 52 mm |
| Outer Diameter (D) | 66 mm |
| Inner Diameter (E) | 38 mm |
| Thread Size (Male) | G 1 1/2” (BSP) |
| Thread Size (Female) | G1 1/2" |
| Compatible Wing Nut | TA 2052060 |
