Fittings TA 1132532

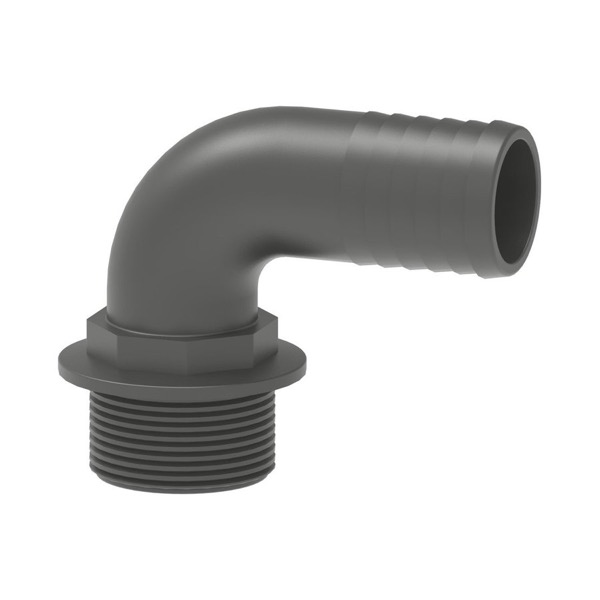

Male Threaded 90° Hose Fitting
G 1 1/4” male elbow with a 32 mm hose tail, 62 mm by 60 mm, 24 mm hex. Typical fit is the suction or delivery port of a mid-size pump where the 32 mm hose has to come off sideways to clear the PTO shaft or chassis.
| h (Height) | 24 mm |
| A Dimension | 62 mm |
| B Dimension | 60 mm |
| Ø (Diameter) | 32 mm |
| M (Male Connection) | G 1 1/4” |
