Fittings TA 106638

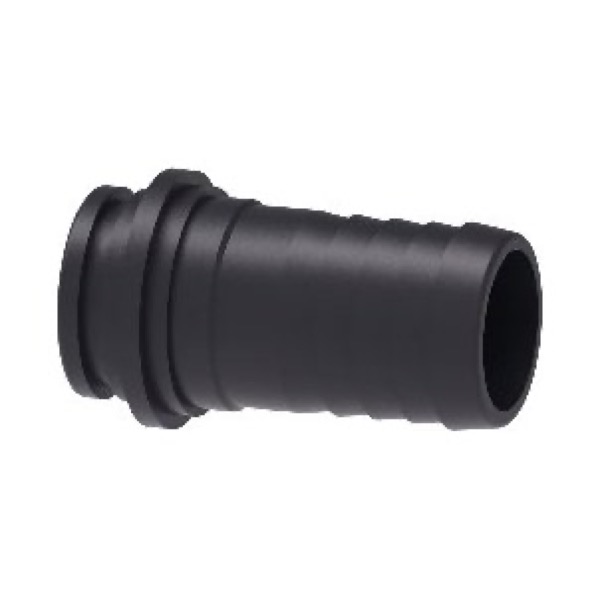

Intermediate Straight Hose Fitting
38 mm intermediate straight fitting, 68 mm long with a 37,5 mm D1 face and G 1 1/2” male thread. It is the hose-tail half of a wing-nut joint: the tail goes into the hose, wing nut TA 2002060 draws it onto the mating part, and O-ring TA G10061 seals it.
| Hose Diameter | 38 mm |
| D1 Dimension | 37,5 mm |
| Length (L) | 68 mm |
| Thread Size (Male) | G 1 1/2" |
| O-Ring Gasket Code | TA G10061 |
| Compatible Wing Nut | TA 2002060 |
