Diaphragm Pumps TP 795

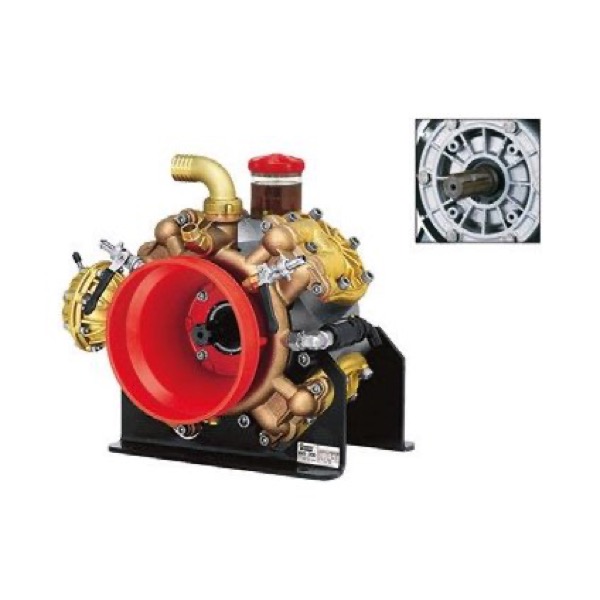

BHS 200 C/C Annovi Reverberi
Four-diaphragm semi-hydraulic pump for high-pressure orchard and vineyard spraying, delivering 193,7 l/min at up to 50 bar and 550 rpm from 22,1 HP. It has separate suction and delivery manifolds, brass/bronze and AISI 303/304 stainless steel liquid-contact parts, and NBR diaphragms and seals. The oil-immersed die-cast casing has a clear oil tank with optional remote sensor, and an air-hydraulic damper limits hammer effect. An oil drain plug, oil-cushion pistons, a reinforced diaphragm system and spherical valves are standard.
| Power (HP) | 22,1 |
| Max. Flow (l/min) | 193,7 |
| Number of Diaphragms | 4 |
| Speed (rpm) | 550 |
| Max. Pressure (bar) | 50 |
| Diaphragm Type | NBR |
| Weight | 65 |
