Diaphragm Pumps TP 718

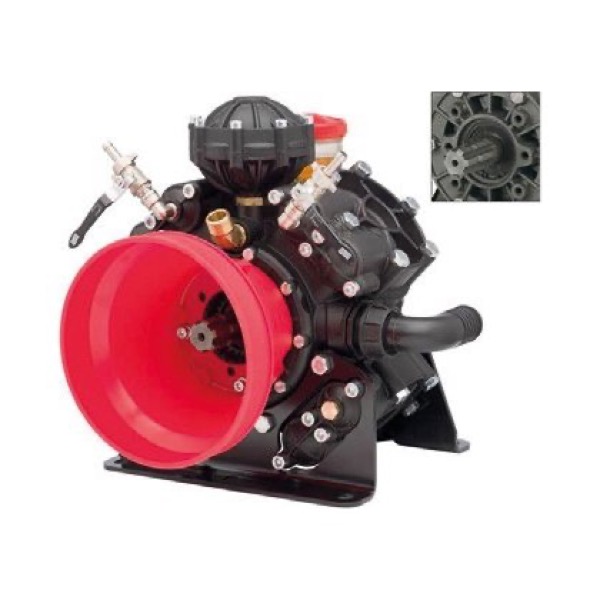

AR 1604 C/C Annovi Reverberi
One of the larger AR orchard pumps, the AR 1604 C/C has four NBR diaphragms and delivers 153 l/min at up to 50 bar and 550 rpm, needing 18,6 HP. Its wet end is anodised aluminium and stainless steel with NBR seals and a clear oil-level tank. Air-hydraulic damping, optional remote monitoring, enhanced diaphragm protection, efficient valves, safety features and galvanised fasteners complete the specification.
| Power (HP) | 18,6 |
| Max. Flow (l/min) | 153 |
| Number of Diaphragms | 4 |
| Speed (rpm) | 550 |
| Max. Pressure (bar) | 50 |
| Diaphragm Type | NBR |
| Weight | 38 |
