Diaphragm Pumps TP 706

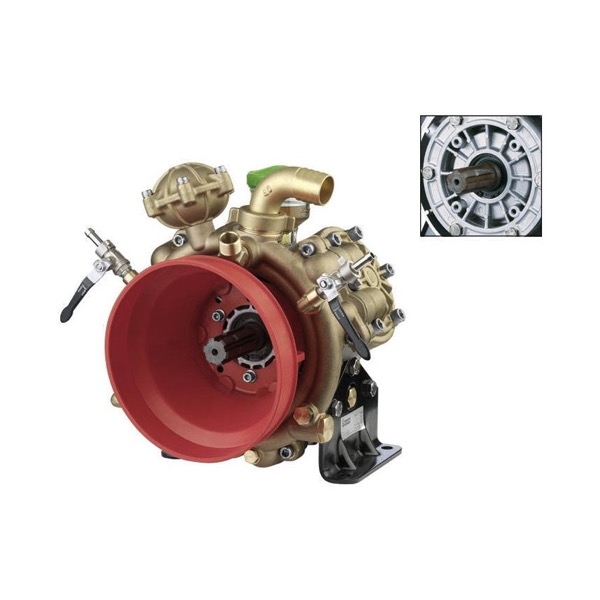

BHS 90 C/C
The BHS 90 C/C is a three-diaphragm high-pressure pump rated at 90.6 l/min and 50 bar maximum at 550 rpm, drawing 10.5 HP. Fitted with NBR diaphragms, it is the smallest BHS pump listed here and suits orchard mistblowers and vineyard sprayers that need high pressure at moderate flow.
| Power (HP) | 10.5 |
| Max. Flow (l/min) | 90.6 |
| Number of Diaphragms | 3 |
| Speed (rpm) | 550 |
| Max. Pressure (bar) | 50 |
| Diaphragm Type | NBR |
| Weight | 42.8 |
