Diaphragm Pumps TP 32097

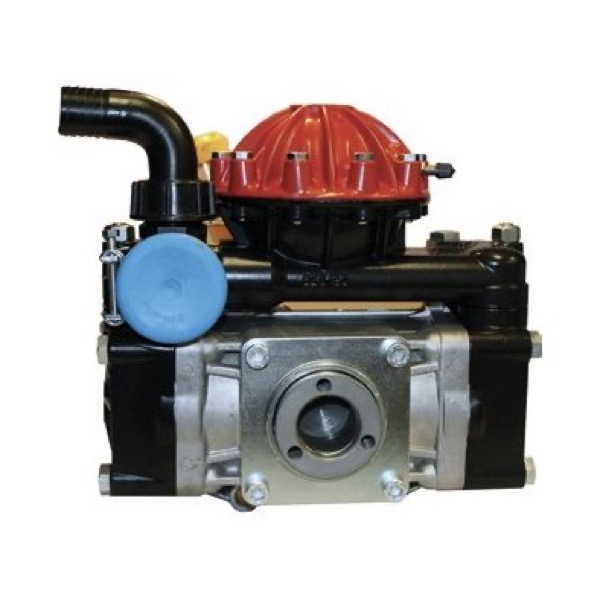

AR 50 SP Annovi Reverberi
Two-diaphragm semi-hydraulic pump with 65,8 l/min maximum flow and 40 bar maximum pressure at 550 rpm, needing 5,2 HP. Suited to greenhouse and orchard sprayers, it accepts drive from electric motors or internal combustion engines. Equipped with BlueFlex diaphragms, segmented pistons, galvanised connection elements and flanges for motor connection.
| Power (HP) | 5,2 |
| Max. Flow (l/min) | 65,8 |
| Number of Diaphragms | 2 |
| Speed (rpm) | 550 |
| Max. Pressure (bar) | 40 |
| Diaphragm Type | BLUEFLEX |
| Weight | 16 |
