Diaphragm Pumps TP 32095

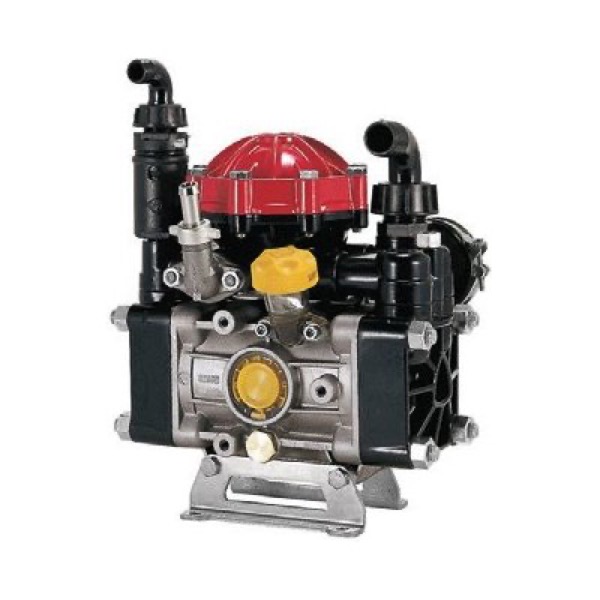

AR 30 SP Annovi Reverberi
Compact three-diaphragm pump for orchard and greenhouse spraying, delivering 36,2 l/min at up to 40 bar and 550 rpm from 2,9 HP. It runs from either an electric motor or an internal combustion engine. BlueFlex diaphragms, segmented pistons, galvanised connection elements and motor mounting flanges are standard.
| Power (HP) | 2,9 |
| Max. Flow (l/min) | 36,2 |
| Number of Diaphragms | 3 |
| Speed (rpm) | 550 |
| Max. Pressure (bar) | 40 |
| Diaphragm Type | BLUEFLEX |
| Weight | 9.3 |
