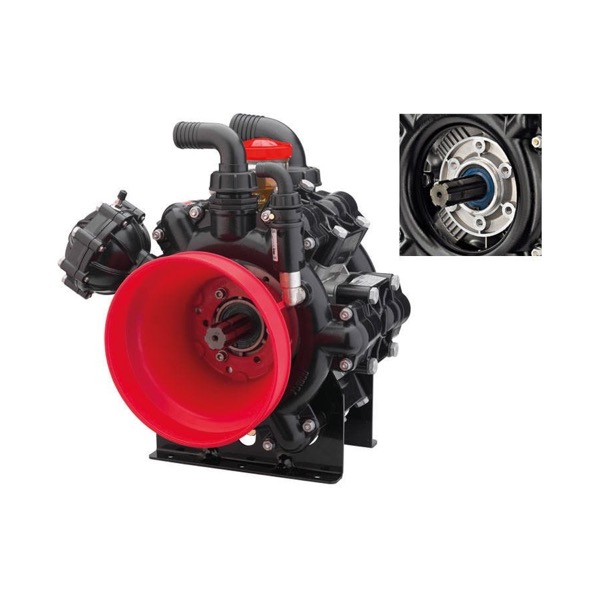

Diaphragm Pumps TP 32046
AR 280 BP C/C
Six-diaphragm low-pressure pump for large boom sprayers, with 277,8 l/min maximum flow at 20 bar and 550 rpm and a 12,9 HP requirement. BlueFlex diaphragms are fitted. The high flow makes it suited to wide booms and high application rates on field sprayers.
| Power (HP) | 12,9 |
| Max. Flow (l/min) | 277,8 |
| Number of Diaphragms | 6 |
| Speed (rpm) | 550 |
| Max. Pressure (bar) | 20 |
| Diaphragm Type | BLUEFLEX |
| Weight | 38.5 |
