Rate Controller
Application rate held constant using flow sensing and LINAK electromotors.
Strooier-dosisbeheerder TNOV130.01

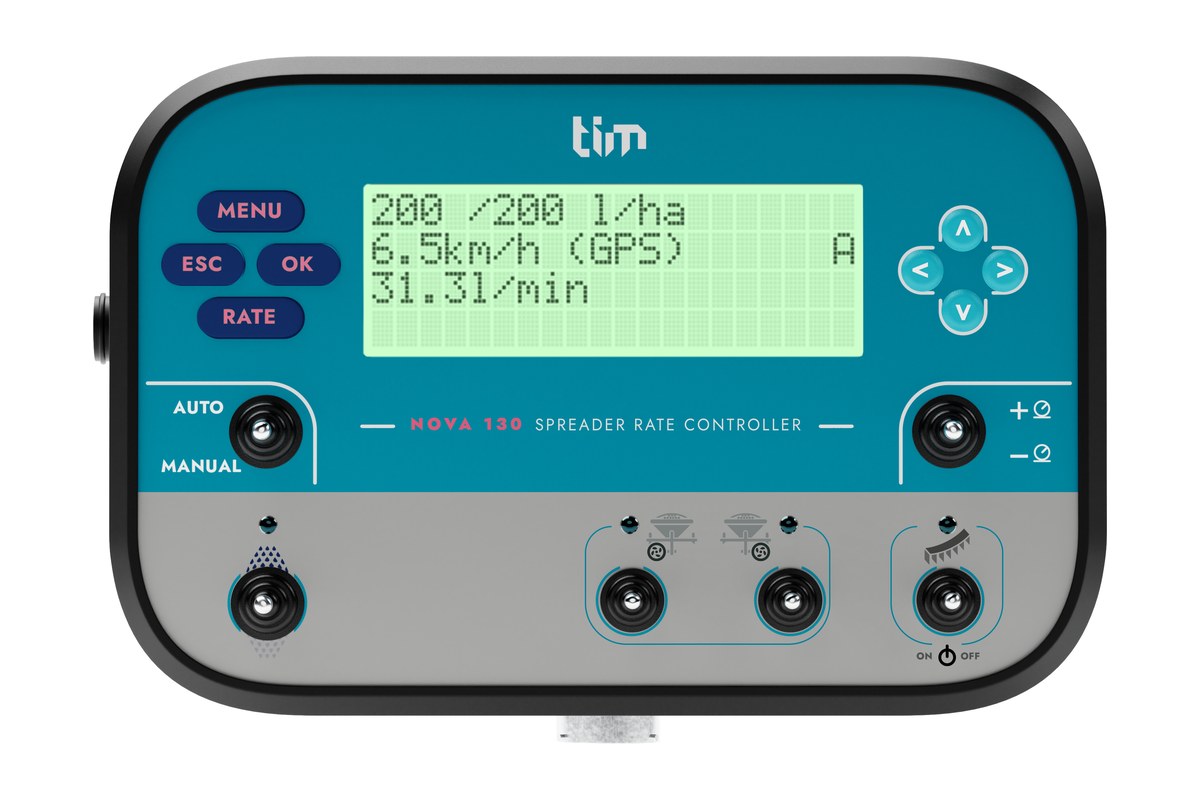

Nova 130
The Nova 130 takes the Nova rate controller to fertiliser spreading. Two LINAK LA12 or LA14 electric actuators open and close the spreader gates, and the computer holds the set kg/ha as tractor speed changes, shuts off at row turns and below minimum speed, and stores ten jobs. A Compact GNSS receiver is included for speed and position.
Best for: twin-disc fertiliser spreaders where the applied kg/ha must stay constant across the field.
| Function | Automatic rate control · spreader |
| Actuators | LINAK LA12 or LA14 · 2 units |
| Display | 20 × 4 character LCD |
| Jobs stored | 10 |
| GNSS | Compact GNSS included (KYP044) |
| Data transfer | SD card + USB |
| Power | 12 V DC |
| TIM App reports | Yes |
Sleutelkenmerke
Nova 130
Large Display
20 × 4 character screen for user-friendly navigation.
Job Registration
10 jobs can be saved and recalled at any time.
Automatic Shut-off
Spreading stops below the minimum set pressure and speed.
Row-Turn Spreading
Ensures efficient spreading after row turns.
Data Transfer
SD card export and USB connection for software updates.
Pakket & bestelkodes
Wat in die boks is
Kernelemente kom saam met elke eenheid; opsies word op aanvraag gekwoteer. Bestelkodes stem ooreen met die Tim Digitize-katalogus.
Kernelemente · 4
- TNOV130.01Nova 130 Computer
- SIM0142 m Power Cable
- KYP044Compact GNSS
- SIM023Nova 130 · 3 + 1.5 m Valve Cable
Opsioneel · 2
- KYP029Triple Suction Cup Mount · 6 cm short arm
- KYP037Screw Mount · 6 cm short arm
Vereiste produkte op die spuit
Klepstelle, sensors en fittings wat die stelsel op die masjien nodig het — ons kwoteer dit saam met die rekenaar en monteer dit by inwerkingstelling.
LINAK actuators
- KYP059LINAK LA12 Actuator · ×2
- KYP068LINAK LA14 Actuator · ×2 (alternative)
Meer presisie-toerusting
Dosisbeheer-rekenaar

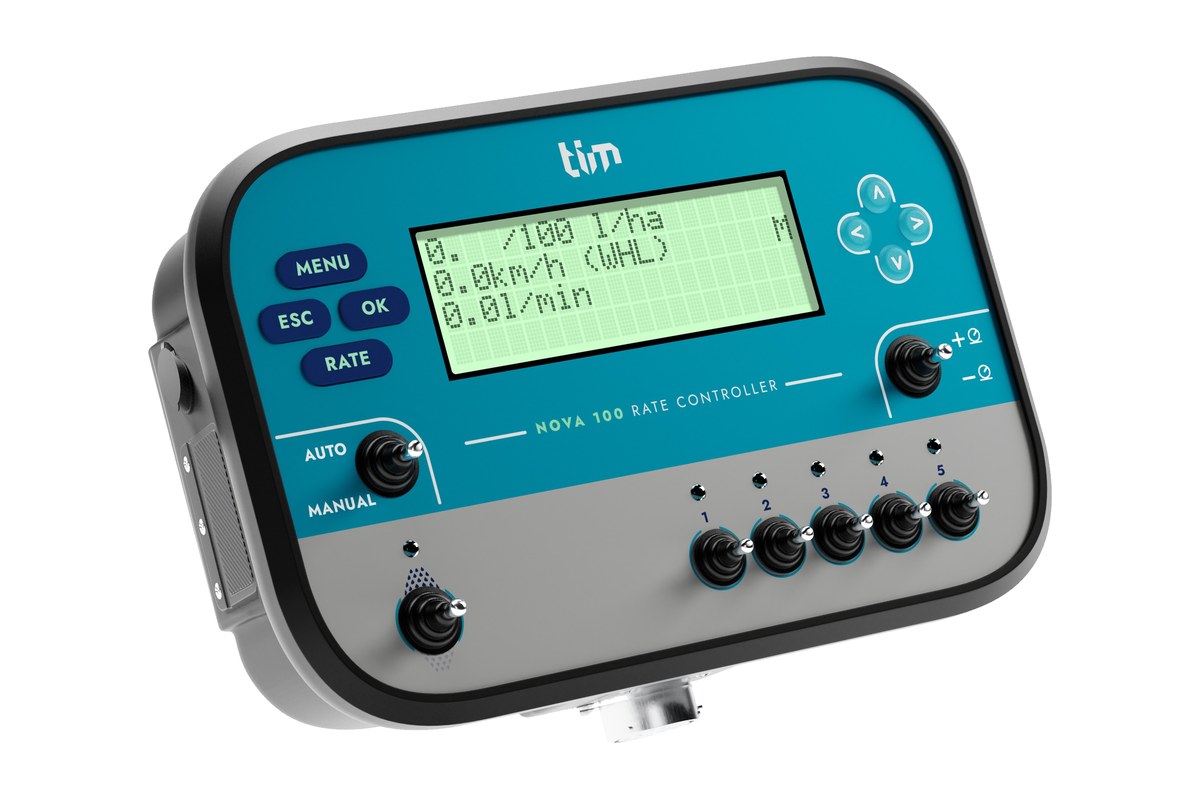

Nova 100
Hou die vereiste toedieningsdosis (l/ha) by elke trekkerspoed met vloei-, druk- en spoedsensors — 5 balkseksies, 10 gestoorde take.
Outomatiese Seksiebeheer-rekenaar
Nova 200
GNSS-geleide bespuiting: outomatiese seksiebeheer, outomatiese dosisbeheer, landgrense en A–B-leiding op een rekenaar — 7 seksies, Cross 200-antenna ingesluit.
Boord-dosisbeheerder

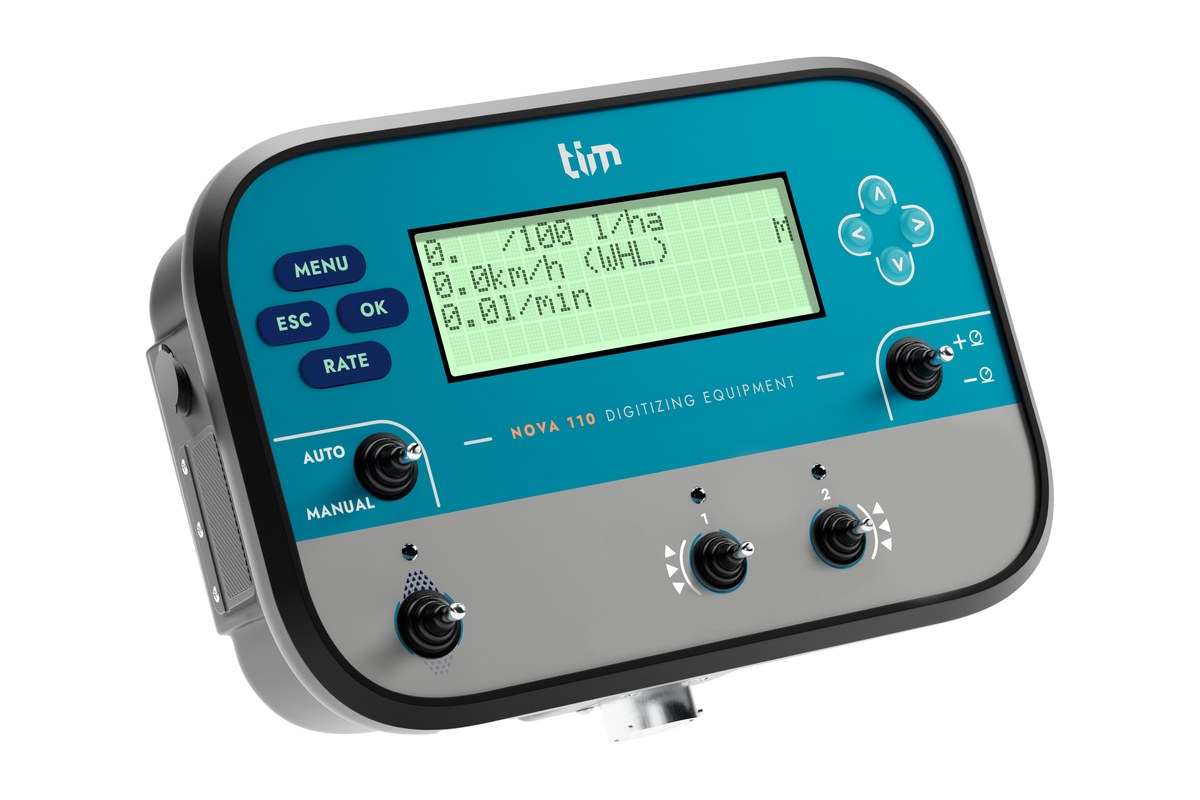

Nova 110
