The Hydra 700 puts seven hydraulic boom functions on switches in the cab — levelling, height, lock and four independent boom movements — driving a 7-spool solenoid directional valve block on the sprayer through a 6 m cable (11 m optional). The AIR version connects the solenoid valves on the sprayer through the AIR ECU and links to the cab wirelessly.
Best for: wide trailed booms such as the TFS 3500 where each wing folds and tilts independently.
Hydraulic valves in the system let you control every boom movement from the cab.
7 Way
Levelling, height, lock and 4 boom movements.
AIR ECU Version
Also available as Hydra 700 AIR — the SIM109 valve cable plugs into ECU socket 4 on the sprayer.
Pakket & bestelkodes
Wat in die boks is
Kernelemente kom saam met elke eenheid; opsies word op aanvraag gekwoteer. Bestelkodes stem ooreen met die Tim Digitize-katalogus.
Kernelemente · 3
THYD700.017W Control Box
SIM0242 m Power Cable
SIM0276 m Valve Cable
Opsioneel · 3
KYP029Triple Suction Cup Mount · 6 cm short arm
KYP037Screw Mount · 6 cm short arm
SIM01311 m Valve Cable
Vereiste produkte op die spuit
Klepstelle, sensors en fittings wat die stelsel op die masjien nodig het — ons kwoteer dit saam met die rekenaar en monteer dit by inwerkingstelling.
Solenoid directional valves
TIMFAYP18Solenoid 7-Spool Directional Valves
AIR ECU · draadlose klepkoppelvlak
Hydra 700 AIR THYD700.02

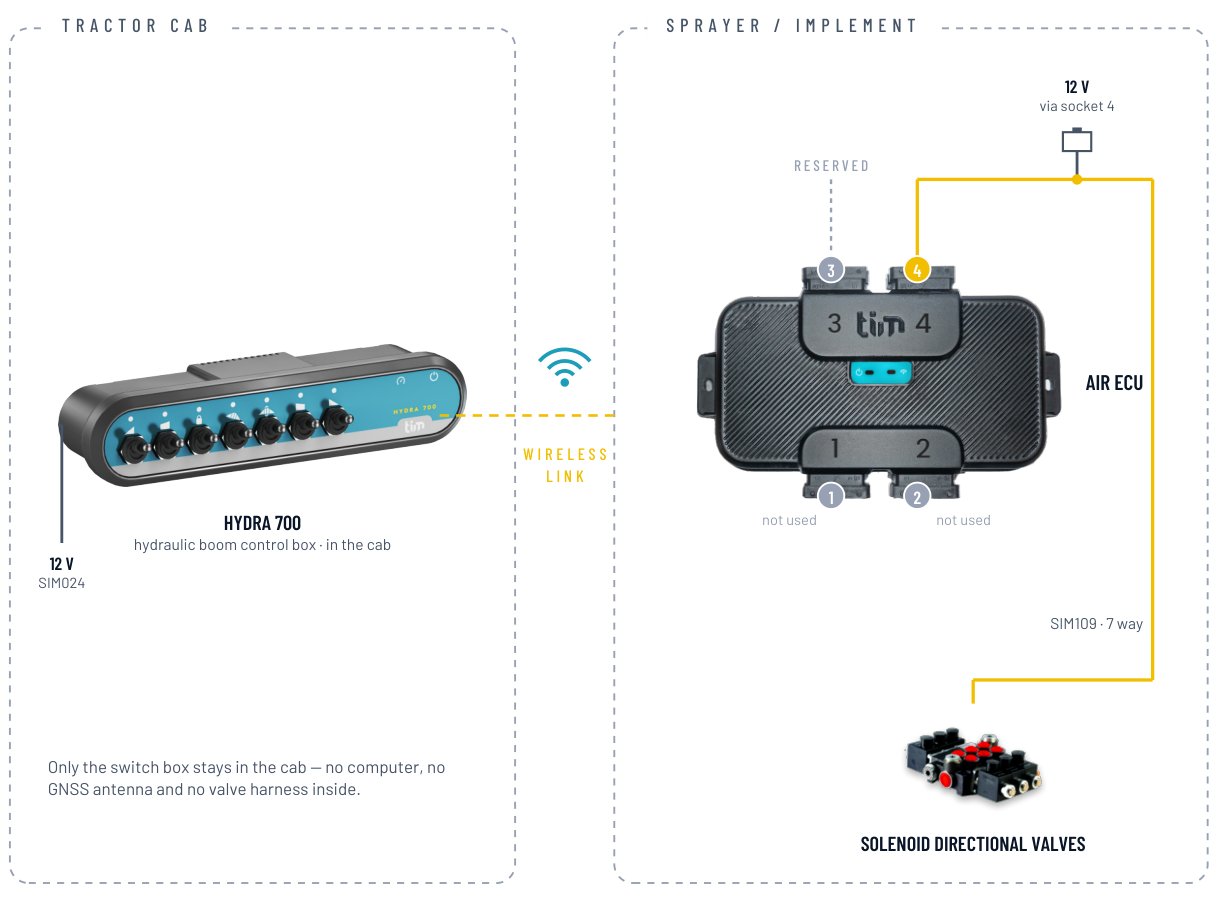

The Hydra 700 hydraulic control box with the AIR ECU wireless valve interface — boom movements from the cab, solenoid valves connected on the sprayer, no valve cable through the cab. The SIM109 valve cable plugs into ECU socket 4.
AIR ECU
Die AIR ECU word op die spuit gemonteer, langs die kleppe. Die klepbedrading prop direk in sy verseëlde, genommerde sokke en die ECU praat draadloos met die kas in die kajuit — geen dik klepkabel hoef in die trekkerkajuit getrek te word nie. Krag- en draadlose-skakel-LED's op die voorplaat wys die status met een oogopslag.
