The Aqua 200 is the simplest way to take spraying control into the cab: two section switches, a main valve switch and a pressure up/down control on one box, with a 4.5 m valve cable to the 40 bar 2-way electro valve kit on the sprayer. No chemical hoses are carried inside the cabin.
Best for: orchard sprayers and small field units with two sections that do not need a rate controller.
Increase or decrease the pressure manually; adjusts spraying dosage during operation.
Control Box
Controls 2 section valves open/close, main valve open/close and pressure regulation.
In-Cab Control
No chemical hoses carried inside the cabin — safe and easy spraying control.
AIR ECU Version
Also available as Aqua 200 AIR with the wireless valve interface — see below.
Pakket & bestelkodes
Wat in die boks is
Kernelemente kom saam met elke eenheid; opsies word op aanvraag gekwoteer. Bestelkodes stem ooreen met die Tim Digitize-katalogus.
Kernelemente · 3
TAQU200.012W Control Box
SIM0242 m Power Cable
SIM0254.5 m 2W Valve Cable
Opsioneel · 1
KYP037Screw Mount · 6 cm short arm
Vereiste produkte op die spuit
Klepstelle, sensors en fittings wat die stelsel op die masjien nodig het — ons kwoteer dit saam met die rekenaar en monteer dit by inwerkingstelling.
40 bar 2W electro valve kit
TA 88121424240 bar 2W Electro Valve Kit
Fittings & manometer
TA 1191425Elbow Fitting · ×1
TA 010004Fitting Set · ×1
TA 911040Manometer · ×1
TA G11054Gasket · ×1
TA 119342545° Elbow Fitting · optional
TA 1091425Hose Connector · optional
AIR ECU · draadlose klepkoppelvlak
Aqua 200 AIR TAQU200.02

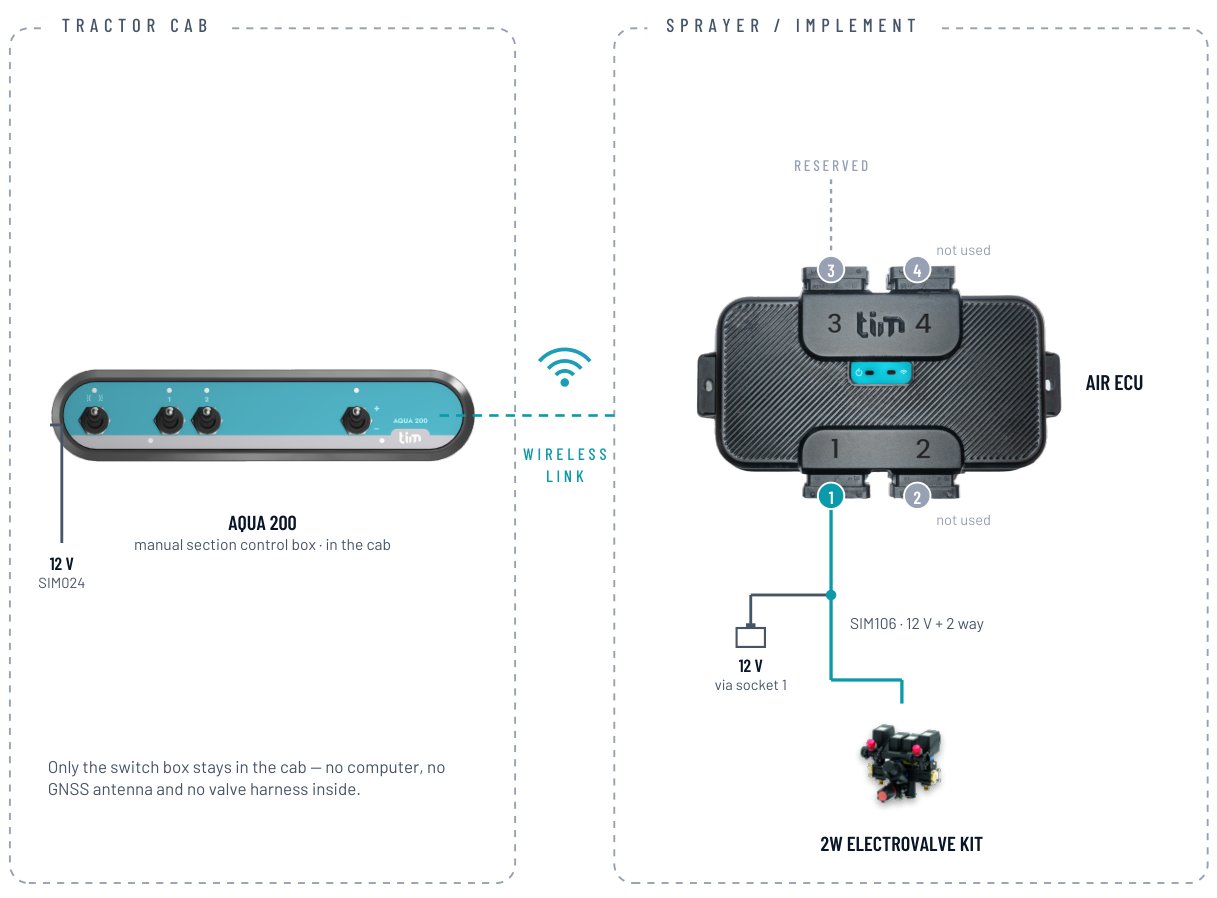

The Aqua 200 control box with the AIR ECU wireless valve interface — manual section control from the cab, valves connected on the sprayer, no valve cable through the cab. The 2-way valve harness plugs into socket 1 of the AIR ECU.
AIR ECU
Die AIR ECU word op die spuit gemonteer, langs die kleppe. Die klepbedrading prop direk in sy verseëlde, genommerde sokke en die ECU praat draadloos met die kas in die kajuit — geen dik klepkabel hoef in die trekkerkajuit getrek te word nie. Krag- en draadlose-skakel-LED's op die voorplaat wys die status met een oogopslag.
